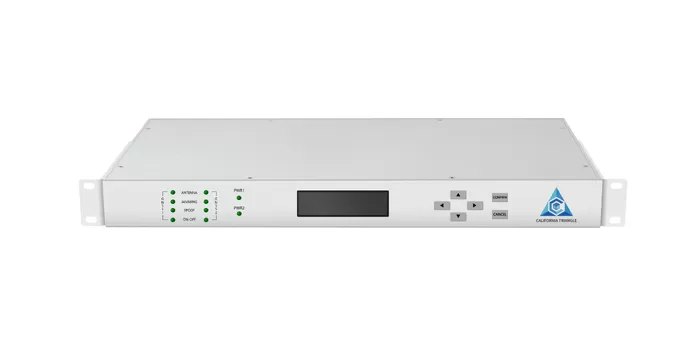

GNSS Jamming&Spoofing Probe CTA300

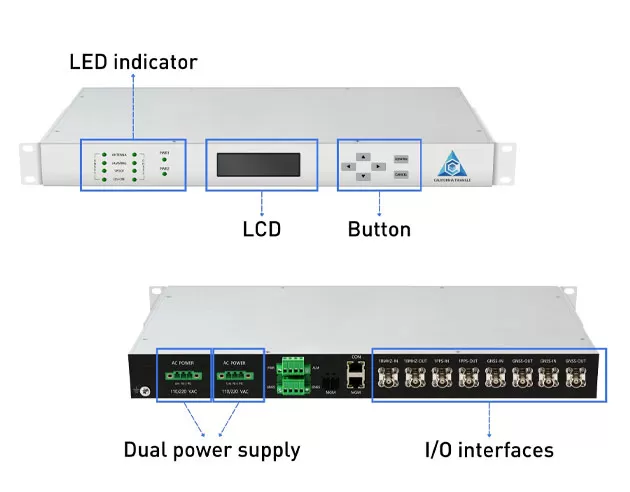

19-inch,1U design;

Support AC and DC redundant dual power supply;

2-way satellite input, 2-way satellite output (support expansion);

Support 1 channel PPS, 1 channel 10MHz input and output Real-time detection of abnormal conditions such as open circuit, short circuit and excessive loss in the feeder;

When the feeder is in a short-circuit state for a long time, it will not damage the internal components of the equipment;

Detect whether there is interference in the received signal in real time, and issue an interference alarm when the interference power reaches a certain level; Real-time detection of spoofing signals in the received signal, when there are spoofing signals, the output signal is turned off and a spoofing alarm is issued;

In-situ installation, without replacing the original satellite timing system, in-situ installation can achieve timing security reinforcement;

Seamless conversion, the original time service system has no perception, that is, the time reference given by it is converted from GPS to BDS;

When the satellite is unavailable (such as national area protection, GPS service shutdown, etc.), or the quality is degraded (such as interference, etc.), an alarm will be given in the form of an indicator light and standard data;

Support alarm output such as power failure and signal abnormality;

All-weather monitoring of the received satellite signal quality, remote monitoring of equipment working status, and setting of working parameters;

The safe signal output can be maintained for at least 1h in the case of suppressing interference in the whole frequency band, and the safe signal output will not be affected in the case of non-BDS frequency point suppressing interference;

Support anti-forwarding, generation and intrusion signal spoofing;

Safe signal output is not affected by GPS deception jamming signals, including generating and forwarding deception jamming;
