High-Performance Clock Generator CTG510

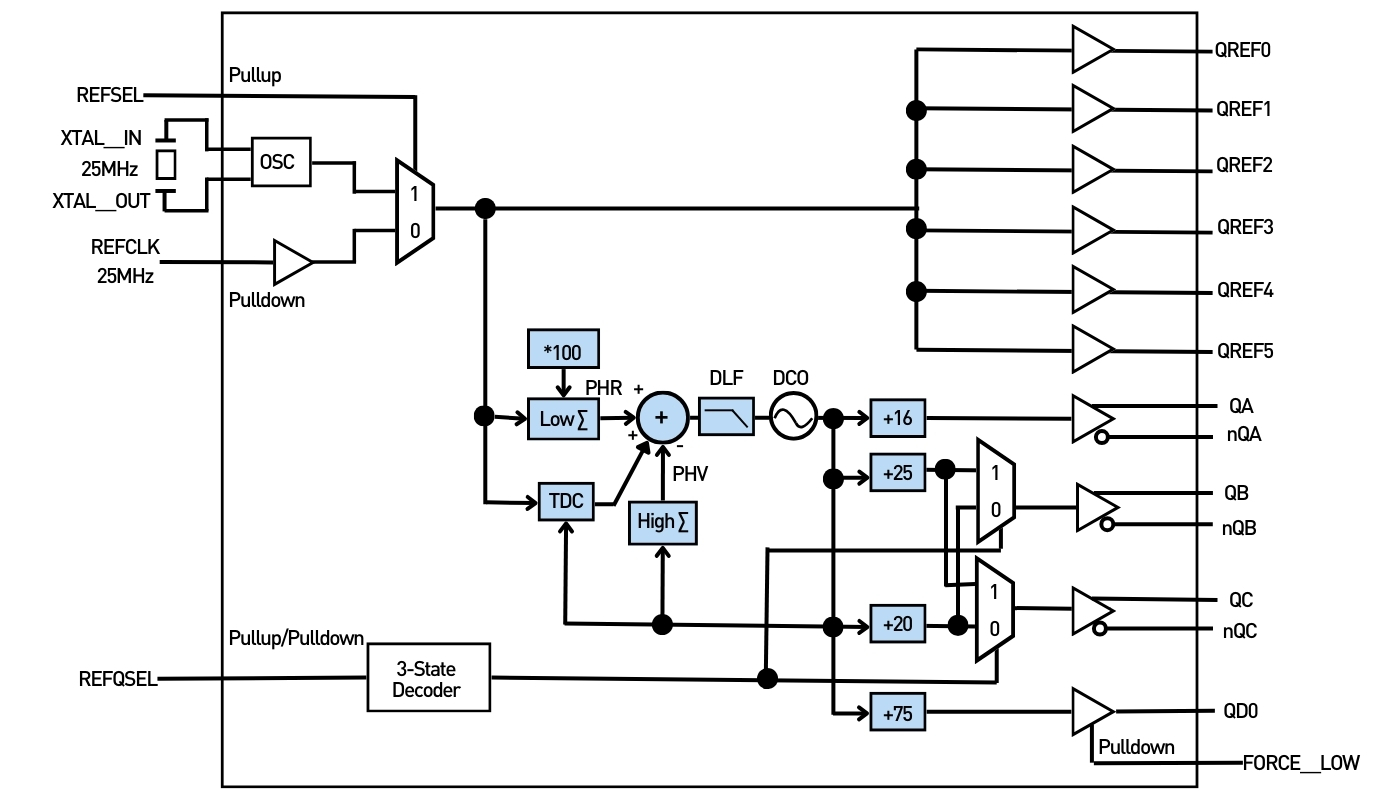

California Triangle provides high-performance, low-noise clock generators for communication, radar, measurement, and industrial control fields. Utilizing ADPLL (All-Digital Phase-Locked Loop) technology, it achieves optimal high-frequency low phase noise performance while featuring low power consumption and high PSNR capability, achieving phase jitter performance of less than 0.3ps RMS. It can output differential 100MHz, 125MHz, 156.25MHz, and single-ended 33.33MHz CPU clocks, while simultaneously outputting 6 channels of 25MHz buffered reference clocks.

Inquire Now + DOWNLOAD +

Technical Specifications

Model	Input Frequency	Input Level Type	Number of Input Ports	Output Level Type	Output Frequency	Line Monitoring	Phase Jitter (12kHz to 20MHz)	Temperature Range	Packaging
CTG510	25MHz	LVCMS Crystal Oscillator	2	10	LVCMOS LVPEC	156.25MHz 125MHz 100MHz 33.33MHz 25MHz	188fs (Typical Values)	-40~+85℃	QFN40
