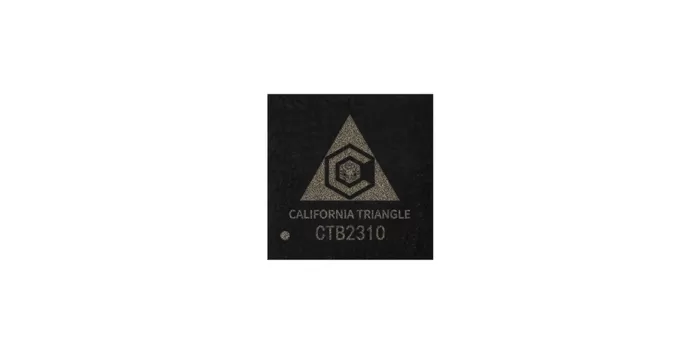

High-Performance Differential Clock Buffer CTB2310

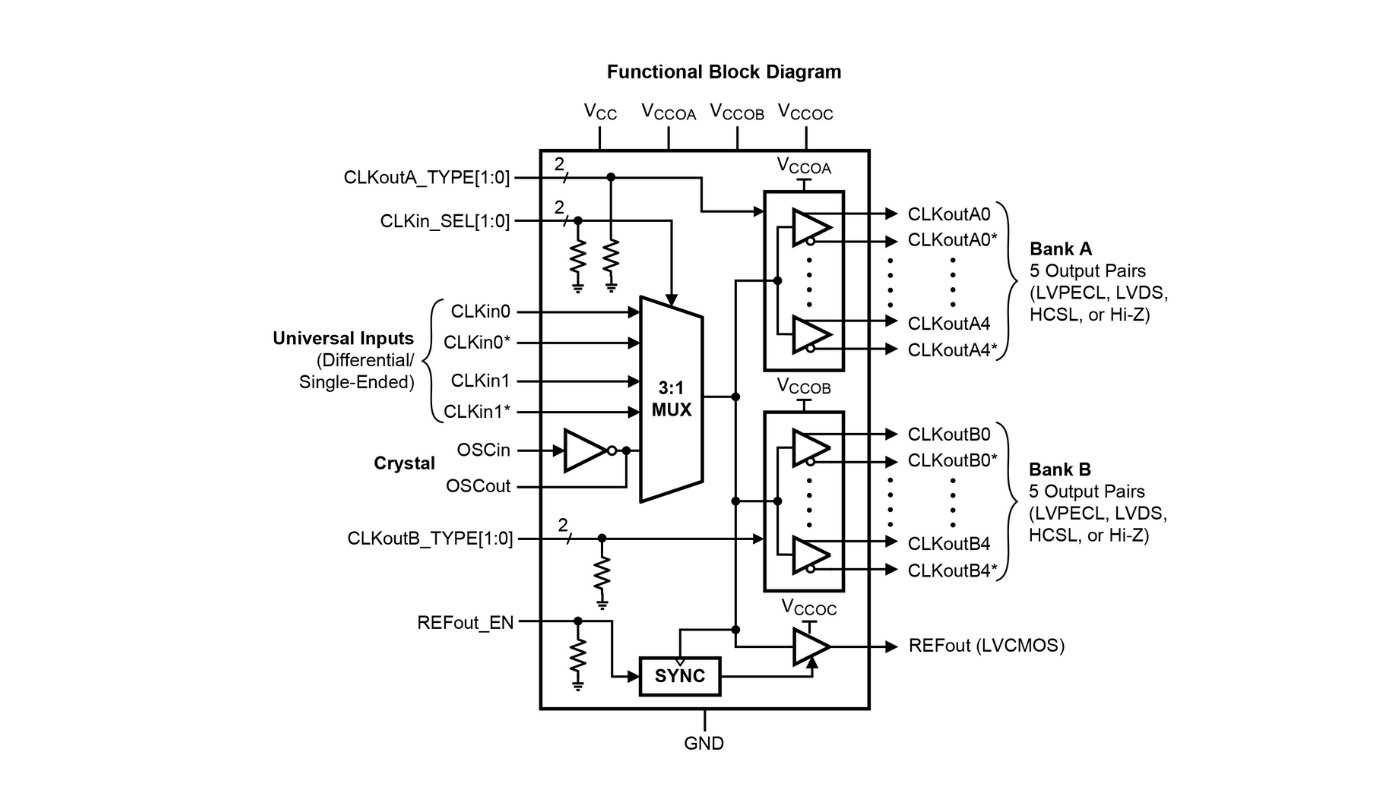

California Triangle provides high-performance, low-noise differential clock buffers for communication, radar, measurement, and industrial control applications. These buffers are designed for high-frequency, low-jitter clock/data distribution and level shifting. The input clock can be selected from two differential inputs or one crystal input. The selected input clock is distributed to two sets of outputs, each set containing five differential outputs and one LVCMOS output with sync functionality. The two differential output groups can be independently configured to LVPECL, LVDS, or HCSL levels, or set to output high impedance.

Inquire Now + DOWNLOAD +

Technical Specifications

Model	Frequency Range	Input Level Type	Number of Input Ports	Core Voltage	Output Voltage	Number of Output Ports	Output Level Type	Temperature Range	Packaging
CT2301	DC~2.1GHz	LVPECL LVDS HCSL SSTLLVCMOS/LVTTL Crystal Oscillator	3	3.3V	2.5V 3.3V	11	LVCMOS LVPECL LVDS HCSL	-40~+85℃	QFN48
