High-Performance Single-Ended Clock Buffer CTB2110

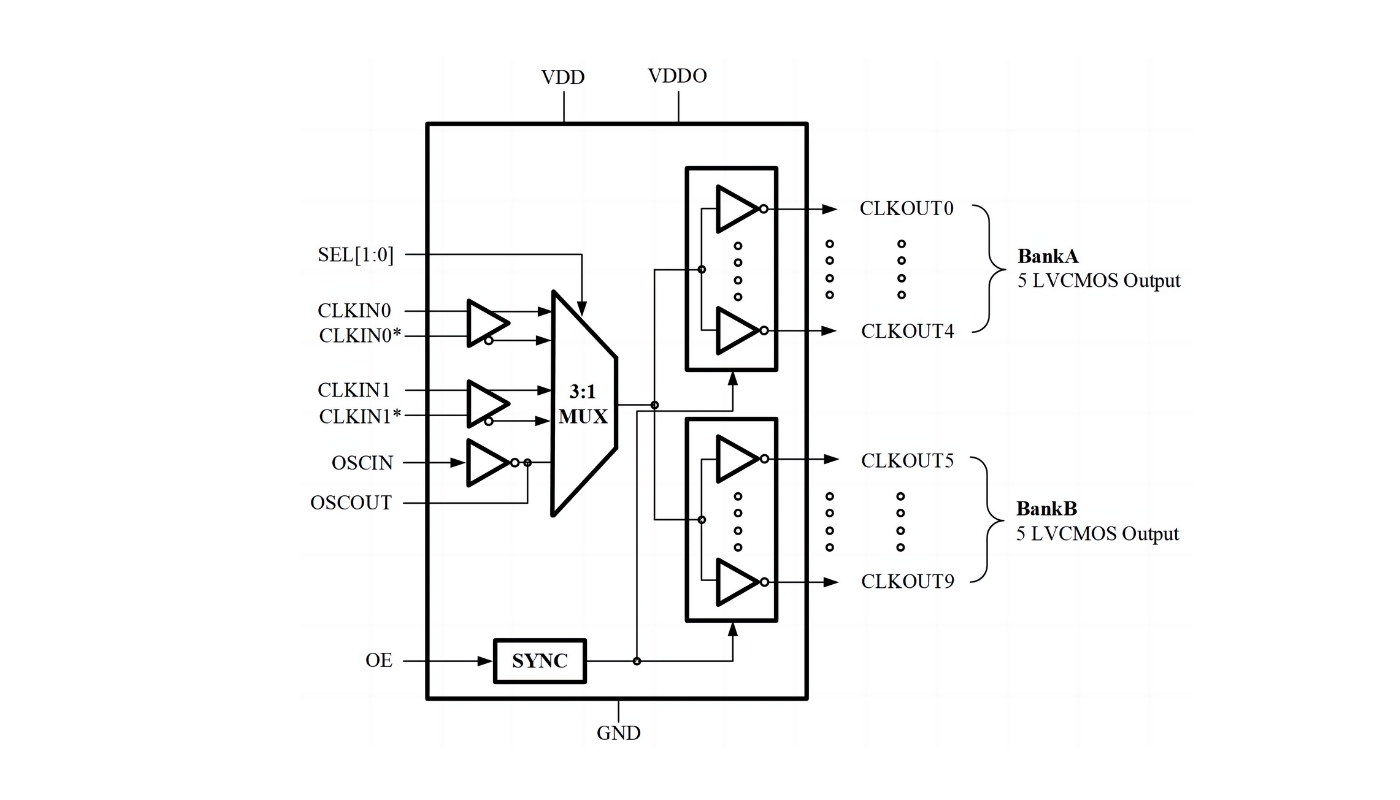

California Triangle provides high-performance, low-noise single-ended clock buffers for communication, radar, measurement, and industrial control fields. This buffer can distribute 10 channels of ultra-low jitter clocks from single-ended, differential, or crystal inputs. It supports glitch-free pulse operation for synchronized output. Ultra-low skew, low noise, and high power supply rejection ratio (PSRR) make this buffer very suitable for various network interconnections, such as telecommunications, server, and storage area network interconnections, RRU Lo reference distribution, medical, and testing equipment applications. Additional jitter is a maximum of 30fs.

Inquire Now + DOWNLOAD +

Technical Specifications

Model	Frequency Range	Input Level Type	Number of Input Ports	Core Voltage	Output Voltage	Number of Output Ports	Output Level Type	Temperature Range	Packaging
CTB2110	DC~200MHz	LVPECL LVDS HCSI SSTL LVCMOS/LVTTL Crystal Oscillator	3	3.3V	1.5V 1.8V 2.5V 3.3V	10	LVCMOS	-40~+85℃	QFN32
