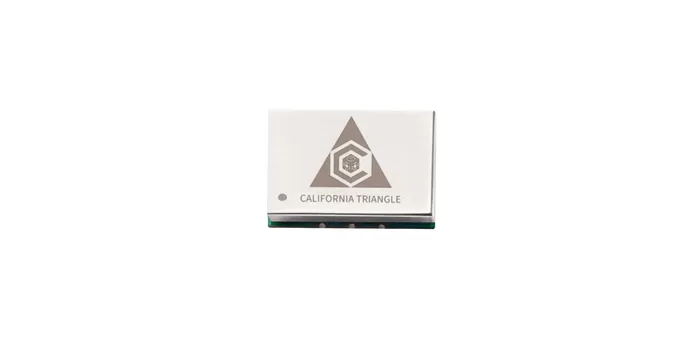

TCXO is a technology that utilizes an algorithm to compensate for temperature variations to maintain frequency accuracy, and is characterized by miniaturization and low cost. CT Through independent research and development, we have made TCXOs with lower phase noise, and reached a level close to that of OC with the TC solution. For example, the phase noise of this series reaches -143dBc/Hz@1KHz（100MHz）, which can be widely used in various industries.
Product Advantages
Features
Low Phase Noise
Temp Stability≤±0.5ppm(-40-85℃)
Supports Wide Temperature Range
Miniaturization14.4*9.2*5.8mm
Technical Specifications
| Item | Parameters | |
| Basic Performance Indicators | Frequence | 100MHz |
| Supply Voltage | 3.3V | |
| Waveform | Sine Wave | |
| Frequency Tolerance vs. OperatingnTemperature Range | ±0.5ppm(-40~+85℃)±2ppm（-55~+105℃） | |
| Phase Noise @25℃(@10M) | 10Hz | -75dBc/Hz |
| 100Hz | -115dBc/Hz | |
| 1kHz | -143dBc/Hz | |
| 10kHz | -163dBc/Hz | |
| 100kHz | -165dBc/Hz | |
| EnvironmentalConditions | Operating Temperature | -40°C~85°C-55~+125℃ |
| Storage Temperature | -55°C~105C | |
| Vibration | Test Condition: 0.75mm ;acceleration:10g;10Hz～500Hz, one cycle per 30 min, test 2 hour. (3 times for each 3 directions X ,Y , Z)，IEC 68-2-06 Test Fc. | |
| Shock | 50g；11ms；half sine wave (3 times for each 3 directions X ,Y, Z ),IEC 68-2-27 Test Ea/Severity 50A. | |
| Package size | 14.4*9.2*5.8mm | |
