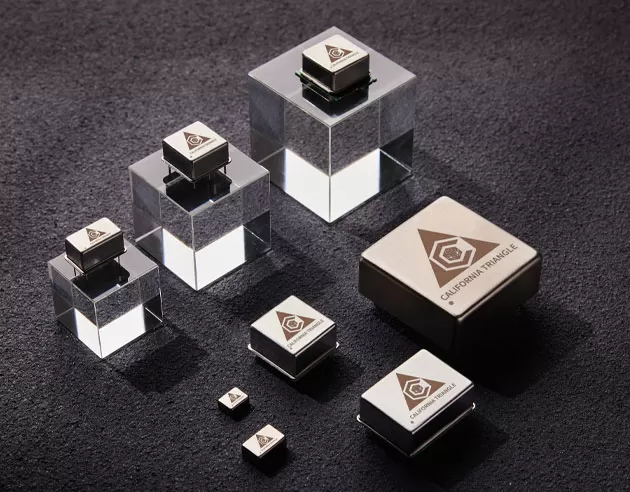

OCXO is a crystal oscillator that utilizes a constant temperature bath to keep the temperature of the quartz crystal resonator in the crystal oscillator constant, minimizing the change in oscillator output frequency caused by changes in ambient temperature.
Product Advantages
Features
Ultra-miniaturization
Ultra-high stability
Low phase noise
Low power consumption
Clock Module
Ultra-High Short-Term Stability
Technical Specifications
Ultra-High Stability
| Series | Temp Stability (ppb) | Aging Pre Day（ppb） | Phase Noise (dBc/Hz@1K) | Operating Temp（℃） | Supply Voltage（V） | Package size (mm) | Typ Frequency (MHz) |
| O5050 | ≤±0.01 | ≤±0.05 | -150 | -40～+70-55～+85 | 5/12 | DIP50.8*50.8*15 | 10 |
| O3627 | ≤±0.1 | ≤±0.1 | -150 | -40～+85-55～+85 | 3.3/5/12 | DIP36.2*27.2*12.7 | 10 |
| O2525O2522 | ≤±0.2 | ≤±0.2 | -155 | -40～+85-55～+85 | 3.3/5/12 | DIP25.4*25.4*12.7 DIP25.4*22*12 | 10 |
| O2020 | ≤±0.5 | ≤±0.5 | -155 | -40～+85-55～+85 | 3.3/5/12 | DIP20.2*20.2*10 | 10 |
Low Phase Noise、Ultra-High Short-Term Stability
| Series | Temp Stability (ppb) | Allen@1s | Phase Noise (dBc/Hz) | Operating Temp（℃） | Supply Voltage（V） | Package size (mm) | Typ Frequency (MHz) |
| O5050O3627 | ≤±0.5 | ≤±1.5E-13≤±8E-14 | -122@1HZ-147@10HZ-161@100HZ-165@1KHZ | -40～+70-55～+85 | 12 | DIP50.8*50.8*15 DIP36.2*27.2*12.7 | 5-20 |
| O3627O2525 | ≤±5 | ≤±8E-12 | -80@1HZ-113@10HZ-146@100HZ-168@1KHZ | -40～+85-55～+85 | 5/12 | DIP36.2*27.2*12.7 DIP25.4*25.4*12.7 | 80-120 |
| O1409 | ≤±5 | ≤±2E-11 | -105@10HZ-135@100HZ-162@1KHZ-175@10KHZ | -40～+85-55～+85 | 3.3/5 | SMD14.4*9.5*6.5 | 80-120 |
Low Phase Noise、Ultra-High Short-Term Stability
| Series | Temp Stability (ppb) | Aging Pre Day（ppb） | Phase Noise (dBc/Hz@1K) | Operating Temp（℃） | Supply Voltage（V） | Package size (mm) | Typ Frequency (MHz) |
| O1409 | ≤±2 | ≤±1 | -155 | -40～+70-55～+85 | 3.3/5 | SMD14.4*9.5*6.5 | 5-100 |
| O0907 | ≤±10 | ≤±1 | -162 | -40～+85-55～+85 | 3.3/5 | SMD9.7*7.5*3.9 | 10/20 |
| O0705 | ≤±10 | ≤±1 | -162 | -40～+85-55～+85 | 3.3/5 | SMD7.7*7.5*3.3 | 10/20 |
Clock Module
| Series | Holdover | Phase Noise (dBc/Hz@1K) | Operating Temp（℃） | Supply Voltage（V） | Package size (mm) | Typ Frequency (MHz) |
| D5050 | ≤±1.5us/24hΔT=±10°C | -155 | -40～+70-55～+85 | 5 | DIP50.8*50.8*18 | 5-25 |
| D3627 | ≤±1.5us/24hΔT=±2°C | -155 | -40～+85-55～+85 | 3.3/5 | DIP36.2*27.2*15 | 5-10 |
| D2020 | ≤±50us/24hΔT=±40°C | -155 | -40～+85-55～+85 | 3.3/5 | DIP20*20*13 | 8.192-40 |
