NTP vs. PTP—Which Is Right for Your Application?

In the world of industrial switches and precise time synchronization, two key protocols are commonly used: NTP (Network Time Protocol) and PTP (Precision Time Protocol). Both play a crucial role in maintaining smooth operations within industrial networks, but they differ significantly in terms of functionality and application. In this blog post, we'll explore the key differences between PTP and NTP, helping you understand which protocol is best suited for your specific needs.

NTP vs. PTP Explained

Both PTP and NTP are time synchronization protocols used over packet-based networks, but they differ in their design and application. While both use a hierarchical structure to distribute time, PTP follows a master-slave model, whereas NTP operates in a server-client mode. The choice between the two largely depends on the specific requirements of the system.

NTP (Network Time Protocol)

NTP is a widely used protocol for general time synchronization needs across computer networks. It ensures accurate time on computers, servers, and network devices by synchronizing their clocks. NTP operates over the Internet and is commonly used to maintain consistent time across a network.

NTP follows a hierarchical system, with stratum 0 servers at the top, such as atomic clocks and GPS receivers, serving as the reference time source. These servers provide time to stratum 1 servers, which then synchronize with stratum 2 servers, and so on. The hierarchy theoretically supports up to 16 strata, though most implementations typically involve the first few layers.

NTP typically provides sub-millisecond accuracy on local networks and a few milliseconds over the internet, depending on factors like network conditions and server precision. It is well-suited for applications where time accuracy is important but not critical.

NTP is widely supported across various operating systems and network devices, making it easy to implement and universally available. It supports synchronization over the internet and is commonly used in authentication systems like Kerberos. However, its precision is limited by factors such as network latency and congestion, as it primarily relies on one-way communication. These factors can introduce variability, reducing the overall accuracy of synchronization.

PTP (Precision Time Protocol)

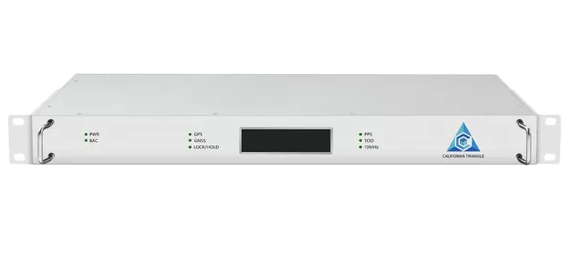

PTP is a highly accurate time synchronization protocol, essential in industries and applications where precise time is critical, such as telecommunications, finance, and industrial automation. Based on the IEEE 1588 standard (including versions like PTPv1 and PTPv2), PTP can achieve nanosecond-level accuracy by calculating and compensating for network propagation delays. This exceptional precision is achieved through hardware-based timekeeping mechanisms and is typically deployed on specialized network equipment, such as grandmaster clocks and boundary clocks.

PTP operates using a master-slave hierarchy, where the grandmaster clock sends a series of synchronization messages to enable slave clocks to adjust for network latency. This highly accurate synchronization ensures precise timestamping and coordinated actions, making PTP indispensable for applications that require extreme time precision.

Compared to NTP, PTP offers superior accuracy, often achieving sub-microsecond or even nanosecond precision. However, this comes with greater complexity in configuration and maintenance, typically requiring specialized hardware and resulting in higher costs. PTP often uses multicast communication, which can increase network load, although unicast mode can mitigate this by allowing the grandmaster to handle requests more efficiently.

Differences Between NTP and PTP

Although both NTP and PTP serve the purpose of time synchronization, they have key differences that distinguish them. Understanding these differences is crucial for selecting the appropriate protocol based on the specific needs of your application. Let's explore the nuances between NTP and PTP and why these distinctions are important.

Choosing the Right Protocol for Your Application

The differences between NTP and PTP make each protocol suitable for different use cases. Selecting the right one depends on your specific synchronization needs, available resources, and the critical nature of your applications.

NTP is best for applications requiring millisecond-level accuracy. It's straightforward, cost-effective, reliable, and easy to configure, without the need for specialized network setups or equipment. Typical uses include clock synchronization for servers, network devices, and log file management. Its simplicity and the availability of public NTP servers make it ideal for non-critical applications.

PTP, on the other hand, is crucial for scenarios where high precision is needed, offering sub-microsecond or even nanosecond accuracy through hardware timestamping. This level of precision demands dedicated hardware and specialized network setups. PTP is essential in applications such as telecommunications (base station synchronization), traffic control (equipment/site synchronization), broadcasting (audio/video equipment synchronization), energy (substation synchronization), and banking (high-speed trading synchronization).

When choosing between the two, consider the nature of your operations, the required precision, and the potential impact of time discrepancies. Assessing these factors will help you select the protocol that best meets your needs.

Conclusion

NTP and PTP serve different precision needs, allowing businesses to align their operations with the required level of accuracy. When choosing between the two, it's essential to evaluate the importance of time accuracy in your specific operations to ensure the best fit for your requirements.
