CT7310 is a outdoor server of IEEE 1588V2 (PTP) . The equipment has stable operation, small transmission error, simple installation, waterproof design, suitable for outdoor and other harsh environments, it has been widely used in related fields.
The CT7310 receives input from external Glonass/BD/GPS satellite signals. It provide two PTP output. When the external reference source is lost, the device enters the hold-over mode, and the device can still export high-precision PTP signal.
Product Advantages
Features

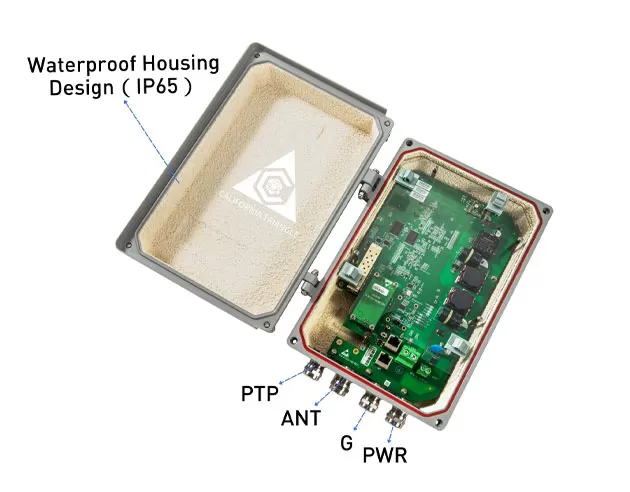

Waterproof shell design；
Precise timing accuracy, NTP adopts hardware time stamp;
Support multi-mode receiver (Glonass, GPS, BDS and Galileo )；
For the two way inhibits PTP output, support bi-directional single core；
Support PTP compatible management functions；
Hold-over mode;
Each PTP port support 500 PTP clients at 128PPS.
Input
1 x satellite input(TNC)
Glonass/GPS/BD input
Output
2 x PTP outputs.
Technical Specifications
| Item | Technical index | |
| PTP | Timing accuracy | ≤±40ns |
| Punctuality function | 24 hours to maintain performance | ≤±10μs |
| Class of protection | IP65 | |
| Power source | 85~265V（AC）/100~370V（DC）Single feed | |
| Power dissipation | ≤15W | |
| Environmental adaptability | Operating temperature | -40°C～+70°C |
| Storage temperature | -40°C～+70°C | |
| humidness | 0~95% | |
| Dimensions (height × width × thickness) | 306mm×204mm×105mm | |
| weight | ≤3.5kg | |
